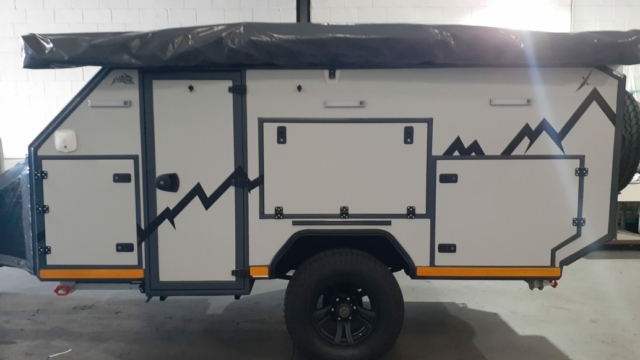

Armadillo XTR312 2 berth caravan

The caravan is available in three optional body colours; Pearl Gentian Grey, Light Grey, and Blue Grey.

Armadillo XTR312 Specification:

• 2 Sleeper Offroad Caravan
• Dry Weight: 1 300 kg
• GVM: 1 900 kg
• Total Length: 5 400 mm
• Total Height Roof Down: 2 200 mm
• Total Heights Roof Up: 2 710 mm
• Total Width 2 495 mm
• Ground Clearance 350 mm

Armadillo XTR312 standard features include:

Chassis

• Chassis – Welded assembly
• Heavy duty galvanised chassis

Components

• AL-KO 10 blade leaf springs (2000kg)
• Monroe Gas Magnum heavy-duty shock absorbers
• AL-KO Auto reverse coupler, overrun braking system and
• AL-KO 2000kg break axle
• AL-KO heavy-duty Jockey wheel
• 4 x AL-KO Landing Legs
• A-Line Rebel – Satin Black 16″ Aluminium rims
• All terrain R265/70/16 tyres and mud flaps

Armadillo XTR312 External:

• Full double skin insulated aluminium body, doors, floor and roof
• Aluminium nosecone with generous 300L storage capacity inside, incorporating wood storage rack on top
• Full size rear mounted spare wheel with spare wheel brace
• Armadillo branded canvas spare wheel cover
• 100L Stainless steel water tank
• 50L Stainless steel reserve water tank
• Micro Dotted (Data dot)

Optional Extras:

• Armadillo Bike Base Set on Nosecone for 2 x bikes
• 2 x Armadillo Body Stone Deflectors
• Camping Table 1250×612 (fitted behind nose cone in slide).
• Caravan movers wireless (Pricing TBC With Supplier)
• Tyre & Rim Upgrade 17″ (Pricing TBC With Supplier)
• Toolbox cabinet – fitted on rear of caravan
• Jerry can holder – fitted on rear of caravan
• Jerry can
• Travel Blanket
• Jockey wheel holder
• Nosecone cover

Window

Window with mosquito netting as well as blind

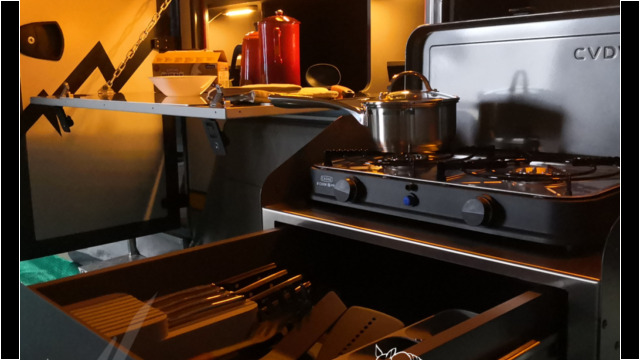

Kitchen

• Slide out to accommodate fridge/freezer up to 90L in size with a fixed built in drawer cabinet
• Stainless steel slide out containing two plate gas stove, with large drawer underneath
• Cadac 2 plate electric ignite burner with grill pans
• 2x Washup dishwashing basins and drying rack
• 1x Extended hose with hot and cold water
• Large crockery cupboard opens to form preparation surface
• Extra crockery cupboard above gas stove
• 1x 220V plug in crockery cupboard
• 1x 220V plug for fridge/freezer
• Brad Harrison plug to connect fridge/freezer
• 3x External Dual Mode Touch LED lights illuminating kitchen, stove and refrigeration area

Optional Extras:

• 90l National Luna Fridge/freezer Combo
• Crockery Set
• Foam crockery cut-outs

External Shower

• 1x External Dual Mode Touch LED light illuminating shower area
• Shower Awning
• 1x extendable shower hose with hot and cold water

Washing line

• Washing line on side of caravan
• Storage Space
• Outside door with storage space under bed

Roof

• Gas strut assisted lift roof with full tent surround
• Big windows in canvas covers
• Ventilator in roof
• 160W Solar panel fitted in slide on the roof to allow removal of panel when necessary

Other Electrical

• 50 AMP Brad Harrison plug on A-Frame to charge battery from vehicle while driving
• 20m RV power lead
• Extra Brad Harrison plug at back of caravan (outlet for other electrical items)
• 20m power lead for solar extension for battery charging

Armadillo XTR312 interior:

• Queen size bed – 1500 x 1900
• 130mm high density and memory foam mattresses
• Internal storage with canvas doors
• Plumbed internal wash basin (cold water only)
• LED lights in all storage compartments
• 2x LED Gooseneck reading lights at headboard
• Space for microwave (microwave to be supplied by owner)
• 220V plug for microwave
• 2x 220V Multi plugs including USB charging points
• 2x LED lights fitted to roof for interior lighting
• Vinyl flooring
• Porta Potty storage shelf at shower door
• Light switch master panel fitted complete with water pump switch, tank level indicator and battery monitor at caravan entrance

Reconfiguring of queen bed choice

• Include table with comfortable seating
• Flat bed with more storage

Control monitoring systems inside caravan

• Water level sensor
• Switch panel
• Fuse box
• Victron MPPT 100/20Amp solar charge regulator
• Victron Blue smart IP65 battery charger 12V and 15amps
• Electrical distribution board including earth leakage circuit breaker
• Battery isolator switch

Batteries and chargers

• Single 12V 105AH deep cycle battery
• 12V electrical system supplied by single 105AH deep cycle battery
• 220V electrical system powered from external RV socket to internal distribution board
• Victron Smart Shunt & Digital Display with Bluetooth

Optional Extras:

• Victron Blue smart IP65 battery charger 12V and 25amps (recommended with lithium batteries)
• Upgrade to Lithium Battery – 12V 108Ah. (Instead of Deep Cycle Battery)
• Extra Lithium Battery – 12V 108Ah

Doors

• Two entrance doors of which one provides direct access to shower area for privacy
• Mosquito net covering on all doors
• Canvas storage pockets on both doors
• Grab handles at main and shower doors

Awnings

Shower awning

Choice of Main Awning :

• Armadillo 270-degree awning
• Standard Armadillo 3.5 m x 3m awning with trailer skirt

Optional Extras:

Main Awning side walls (each)

Systems

Fresh water

• 10L/min flow control water pump including water tank level indicator on instrument panel
• Permanent Hot and cold-Water installation at shower and kitchen wash up area

Gas

• Gas quick couplers and isolation values
• 2x 3 kg Gas cylinders mounted in a lockable cabinet on the rear
• 6L/min Gas geyser

Fire safety system

1 kg Fire Extinguisher

Optional Extras:

Aircon fitted & Installed in NoseCone (Split-Unit)

Prev 1of5 Next

If you would like to spend your next weekend or holiday in your very own stylish, and versatile Armadillo XTR312 2 berth caravan, simply complete the enquiry form below and a member of the XOG team will respond to you shortly. Prices, availability, rental options and optional extras can be supplied on request. This caravan is ideal to sleep two people comfortably.
